SD1-X | Dual Gantry Solution
Introducing SD1 Series Automated Intelligent Micro-dispenser – with 6 independent axes on dual gantries and algorithm intelligence, SD1 doubles dispensing productivity for 3D-SiP, MEMS, and miniature packages.
Find out more info! You could play the above SD1 Introduction video.
SD1 Series: The Revolution Is Now
The SD1 Series Automated Intelligent Micro-dispenser is a whole new level towards smart productivity. Not only does it solve your stencil dilemma, but it also transcends the barriers of conventional die or lid-attached applications too. It significantly exceeds the limitation of stencil dot printing of 180µm and solder bumping limitation of 150µm – giving you precision like none other. The SD1 dispenses at a minimum of 80µm (the smallest solder dot in the world), with gaps as small as 20µm, and downsizes equipment footprint up to 48%!
Zero Clogging Technology
Our world’s first CLOG-FREE Technology ensures your dispensing process remains hassle-free throughout long productions runtime, eliminating problems such as material clogging and choke.

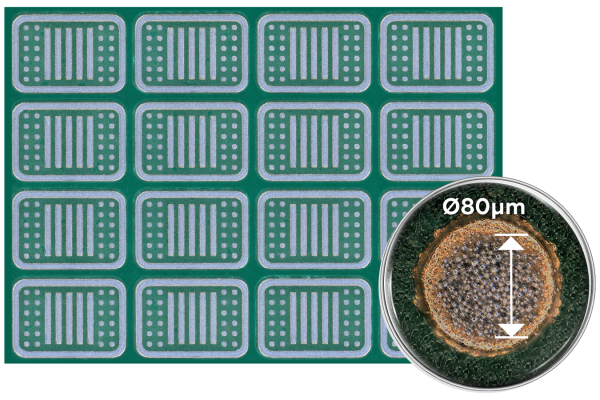

World’s Smallest Dispensed Dots at 80µm
SD1-X can accurately dispense (as tiny as 80µm) with T6 solder paste or some other conductive or non-conductive materials. You can now dispense in microscopic spaces with T6 solder paste to reach complex areas with superior consistency.

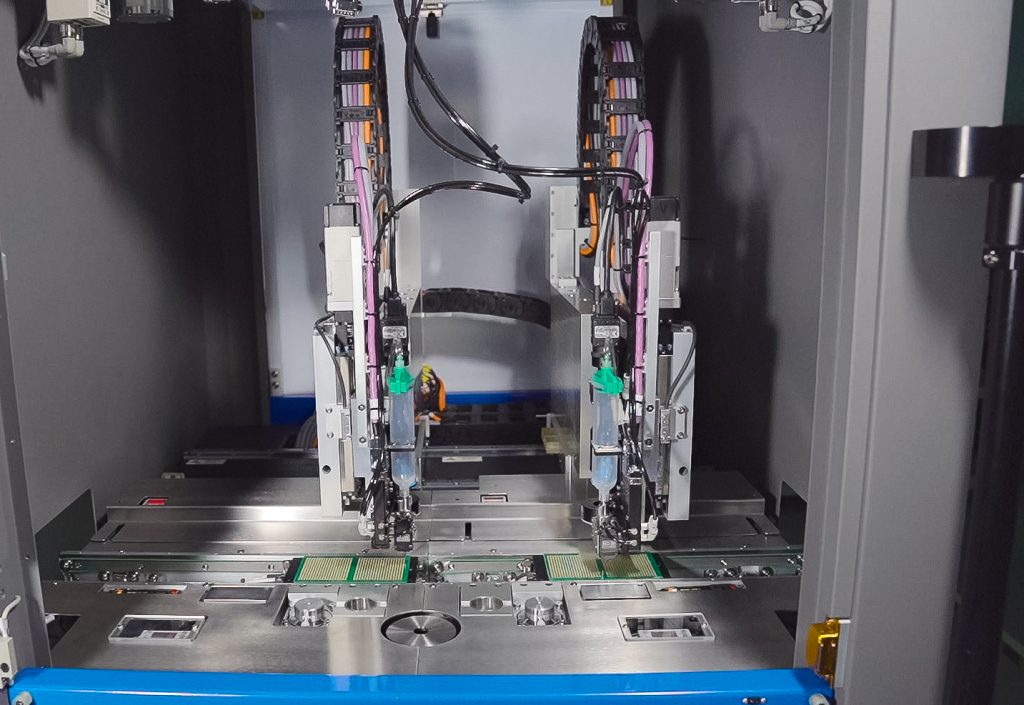

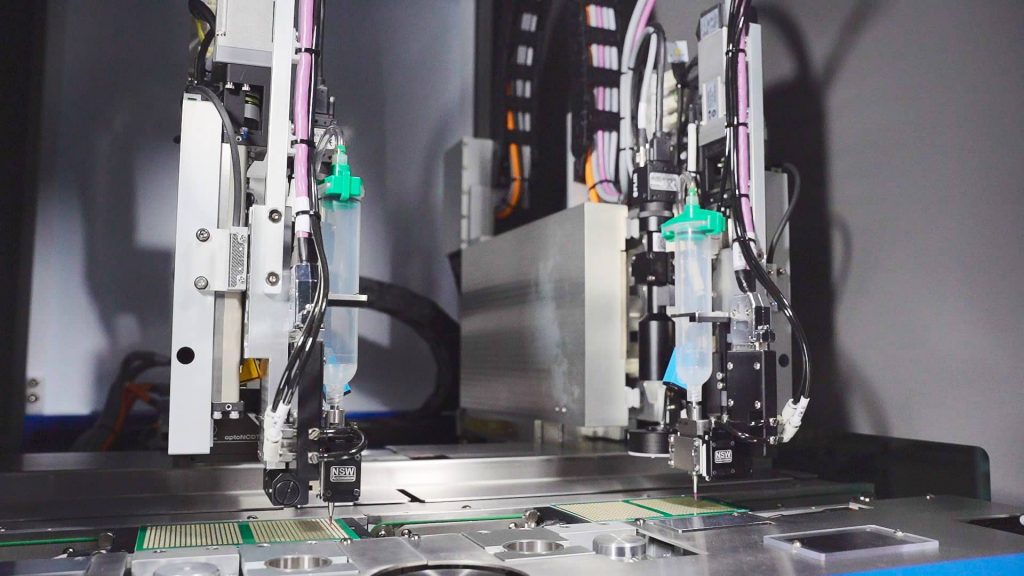

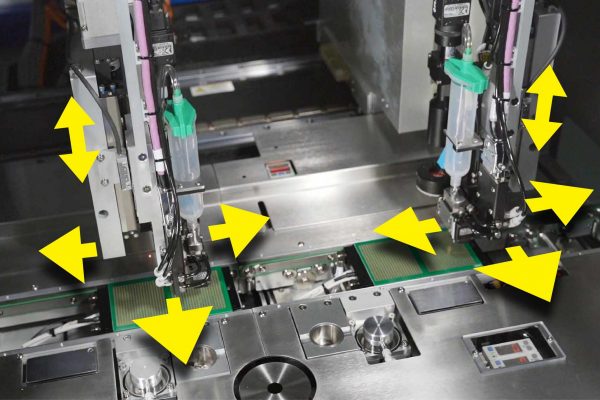

Dual Gantry 2 Different Process
Ability to handle 2 different tasks simultaneously with its dual, fully independent dual gantry motion platform. It adopts two different micro-dispensing heads and with six independent axis-controlled gantry configurations on a separate XYZ axis.
Maximum Throughput;
Twice Everything
Extremely fast and built-in closed-loop linear encoder enables high accuracy and extreme speed without compromise. Armed with intelligent compensation algorithm technology to speed up verification and mass production processes.
No. of MEMS in 5min with 80μm dispensed dots

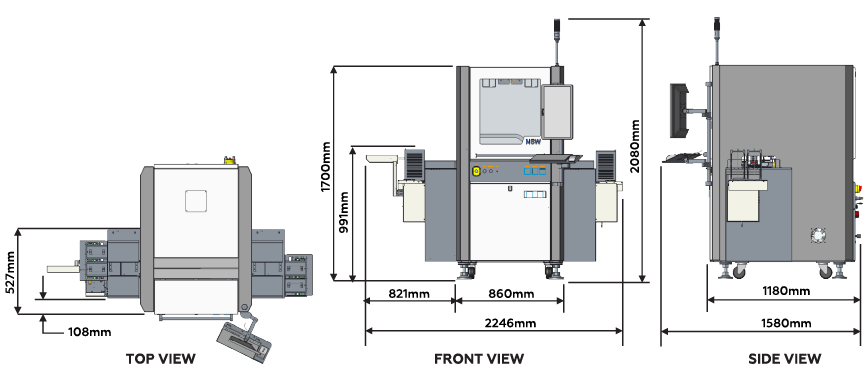

Technical Specification
*All specification results shown may vary depending on test method. All products, specifications and data are subject to change without notice to improve reliability, function or design or otherwise.
